Standard Robot

Complete movement: panning, spinning

*

*

*

l  Able to move normally without exceeding the power limit

l  Able to attack

l  Meets the installation specifications for the Referee System

30

Climbing a 15° slope and displaying power consumption data in real time

√

√

√

5

Launching 50 rounds of projectiles continuously from the magazine to attack a target with the size of a Large Armor Module at 5 meters away, and calculating the hit rate

*

*

*

30

Automatically recognizing and following an armor module

√

√

√

5

At least hitting three armor modules of the Large Power Rune at 8 meters away (Simulating the activation of the Large Power Rune)

√

-

-

5

Steadily passing over a Launch Ramp

√

-

-

5

Demonstrating the installation of the Referee System (or the installation spot reserved for the Referee System)

*

*

*

15

Balancing Standard demonstrates self-help after falling over

√

√

√

5

Hero Robot

Complete movement: panning, spinning

*

*

-

30

Climbing a 15° slope and displaying power consumption data in real time

√

√

-

5

Launching 20 rounds of 42mm projectiles continuously from the magazine to attack a target with the size of a Large Armor Module at 5 meters away, and calculating the hit rate

*

*

-

30

Launching 50 rounds of 17mm projectiles continuously from the magazine to attack a target with the size of a Large Armor Module at 5 meters away, and calculating the hit rate

√

√

-

5

Automatically recognizing and following an armor module

√

√

-

5

Launching 15 rounds of 42mm projectiles to attack a round target with a diameter of 600mm at a distance of about 20m, and hit at least 2 shots (simulating long-range shooting of the Base from the sniper point)

√

-

-

15

Demonstrating the installation of the Referee System (or the installation spot reserved for the Referee System)

*

*

-

15

Controlling the power of its own gimbal through the relay and showing how the relay control is connected to the chassis power

*

*

-

15

Engineer Robot

Complete movement: panning, rotating

*

-

-

l  Able to move normally

l  Able to obtain minerals

l  Meets the installation specifications for the Referee System

30

Control the robot with the custom controller

Mid-term Progress: -

-

-

15

Final Robot: √

-

-

Grabbing the minerals in the groove of the Small Resource Island

*

-

-

30

l  Grabbing the minerals on the ground

l  Grabbing the falling minerals

√

-

-

5

Successfully placing the minerals at the exchange receptacle and pushing in into the receptacle

√

-

-

5

Display the degrees of freedom of the yaw, roll, and pitch axes of the mineral-gripping/exchanging mechanism

√

-

-

5

Simulating the exchange operation at different levels of difficulty (Level 0-4)

√

-

-

15

Demonstrating the installation of the Referee System (or the installation spot reserved for the Referee System)

*

-

-

15

Sentry Robot

Automatically moving on the ground

*

√

-

l  Able to move normally without exceeding the power limit

l  Meets the installation specifications for the Referee System

30

Launching 50 rounds of projectiles continuously from the magazine to attack a target with the size of a Large Armor Module at 5 meters away, and calculating the hit rate

√

√

-

10

Display of the gimbal automatically following the Armor Module (robot); display of the visualized program running effect for Armor Module recognition (refer to appendix figure 1)

Mid-term Progress: -

-

-

10

Final Robot: √

-

-

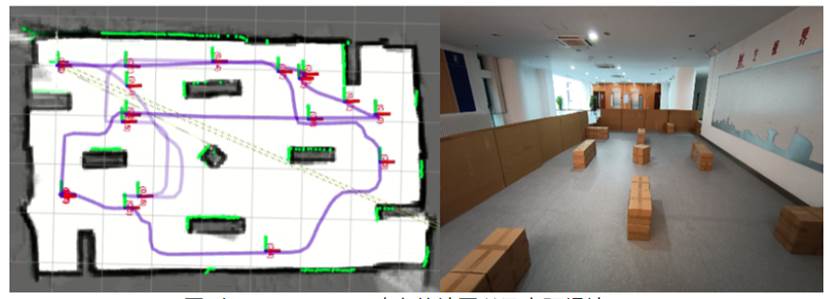

Display of the robot’s movement, positioning, obstacle avoidance, path planning and the visualized program running effect corresponding to the actual movement (refer to appendix figure 2)

Mid-term Progress: -

-

-

10

Final Robot: √

-

-

Display of Sentry’s different operation modes (such as patrolling between two points, rotating in place, autonomously striking back). The operation modes can be controlled through external signals.

√

-

-

10

Demonstrating the installation of the Referee System (or the installation spot reserved for the Referee System)

*

*

-

15

Aerial Robot

Displaying a fully enclosed propeller guard

*

-

-

l  Has a fully enclosed propeller guard

l  Able to move normally without exceeding the power limit

l  Meets the installation specifications for the Referee System

15

Complete movement: take-off, movement, hovering, landing

*

-

-

30

Launching 50 rounds of projectiles continuously in flight to attack a target with the size of a Large Armor Module at 5 meters away, and calculating the hit rate

√

-

-

5

Demonstrating the installation of the Referee System (or the installation spot reserved for the Referee System)

*

-

-

15

Dart System

Adjusting the angles of pitch and yaw axes of the dart launcher

√

-

-

l  Able to launch darts normally

l  Meets the installation specifications for the Referee System

5

Loading and launching darts

*

-

-

5

Launching 4 darts to attack a round target with a diameter of 350mm at a distance of about 16m, and hit at least 1 shot (simulating hitting the Outpost)

Mid-term Progress: √

-

-

15

Final Robot: -

-

-

Launching 4 darts to attack a round target with a diameter of 350mm at a distance of about 25m, and hit at least 1 shot (simulating hitting the Base)

Mid-term Progress: -

-

-

15

Final Robot: √

-

-

Demonstrating the ability of the Dart to attack a round target with a diameter of 350mm at a distance of about 16m or 25m after self-adjustment

Mid-term Progress: -

-

-

15

Final Robot: √

-

-

Demonstrating the installation of the Referee System (or the installation spot reserved for the Referee System)

*

-

-

15

Radar

The radar can be connected to the server and display images normally

√

-

-

-

10

Miscellaneous

Demonstration of other special functions

√

√

√

Extra points will be given based on the actual effects.

-
